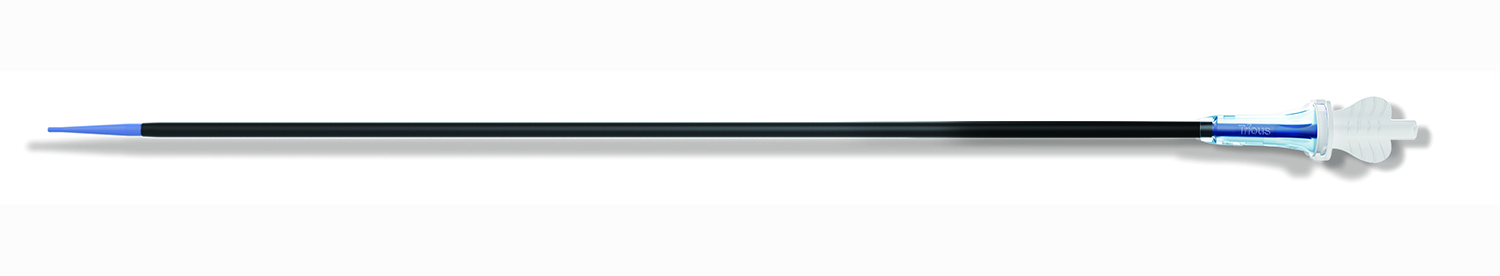

Flexible Ureteral Access Sheath

This flexible ureteral access sheath are US FDA 510K approved and MDR (CE) certified by TUV. They are used for RIRS surgery, urology ureteroscopy and diagnosis, it is designed to establish tract from urethra to the renal pelvis for the devices advancement and withdrawal.
Working principle: In urological surgery, the access guide sheath is used in combination with the dilators. After entering the urinary tract under the guidance of B-ultrasound or X-ray, the dilator is withdrawn and the guide sheath is left in place to establish and maintain the passage for endoscope and other instruments to enter the urinary tract.
Scope of application: Disposable ureteral access sheath is used to establish tract/passage for endoscope and other instruments to enter the urinary tract during urological surgery.
Applicable population: It is suitable for patients who need to establish tract/passage for endoscope and other instruments to enter the urinary tract.
Product Detail


Description:

Disposable flexible ureteral access sheath is used for RIRS surgery,  urology ureteroscopy and diagnosis, it is designed to establish tract from urethra to the renal pelvis for the devices advancement and withdrawal.




Features:

---Simple Structure.

---Soft dilator tip design that could access the ureteral stricture smoothly.

---Both the dilator and sheath are visible under the X-Ray and have scale mark lines to ensure the accurate position.

---Sheath material: PTFE/Inner, SUS304/Middle, Nylon/outer, and PVP hydrophilic coating.

---Dilator tube material: PE.

---Packaged: individual bag each sheath, sterilized by ethylene oxide.

---CE MDR and FDA 510K certified.


Ordering Informaiton:

No.

Model

Description

ID/OD(Fr)

Length (cm)

1

205Z10F35

Z type

Straight joint access sheath

10/12

35

2

205Z10F45

45

3

205Z11F35

11/13

35

4

205Z11F45

45

5

205Z12F35

12/14

35

6

205Z12F45

45

7

205Z13F35

13/15

35

8

205Z13F45

45

9

205Z14F35

14/16

35

10

205Z14F45

45

11

205Y10F35

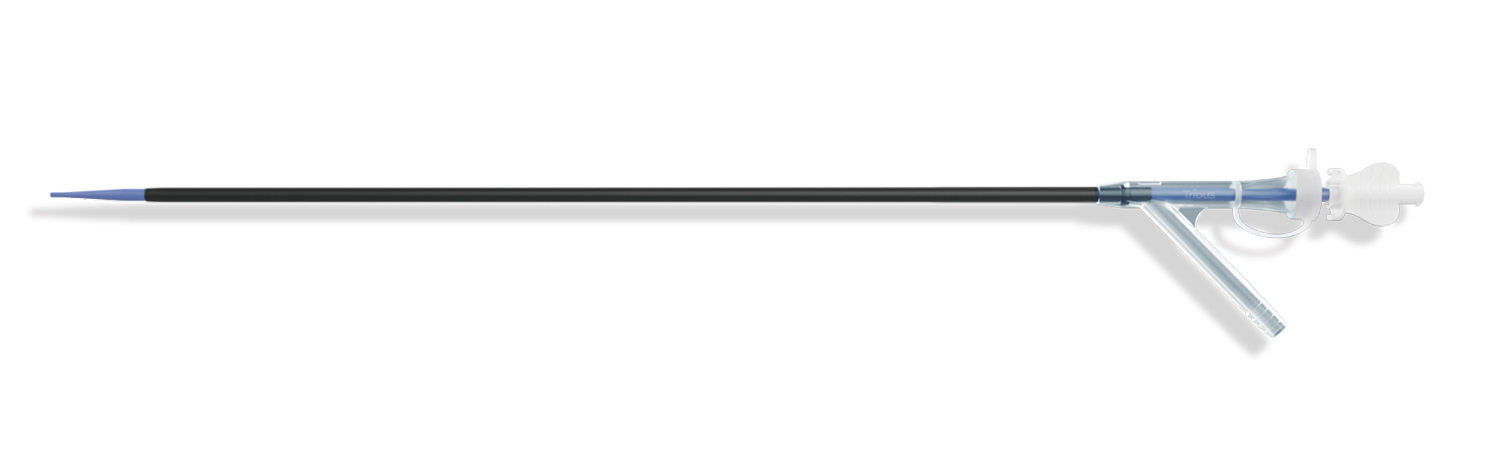

Y type negative suction Y joint access sheath



10/12

35

12

205Y10F45

45

13

205Y11F35

11/13

35

14

205Y11F45

45

15

205Y12F35

12/14

35

16

205Y12F45

45

17

205Y13F35

13/15

35

18

205Y13F45

45

19

205Y14F35

14/16

35

20

205Y14F45

45

21

205W10F40

W type negative suction Y joint access sheath

10/12

40

22

205W10F50

50

23

205W11F40

11/13

40

24

205W11F50

50

25

205W12F40

12/14

40

26

205W12F50

50

27

205W13F40

13/15

40

28

205W13F50

50

29

205W14F40

14/16

40

30

205W14F50

50

31

205T10F35

T type

Straight joint access sheath

    10/12

35

32

205T10F45

45

33

205T11F35

11/13

35

34

205T11F45

45

35

205T12F35

12/14

35

36

205T12F45

45

37

205T13F35

13/15

35

38

205T13F45

45

39

205T14F35

14/16

35

40

205T14F45

45

41

205C10F35

C type negative suction W joint access sheath



10/12

35

42

205C10F45

45

43

205C11F35

11/13

35

44

205C11F45

45

45

205C12F35

12/14

35

46

205C12F45

45

47

205C13F35

13/15

35

48

205C13F45

45

49

205C14F35

14/16

35

50

205C14F45

45
